Gantry Bin Tipper
Applications: Fruit, vegetables, and various other product types.
Designed for plastic bins (1165mm x 1165mm x 780mm) with custom options, the system handles up to 600kg per bin and achieves tipping speeds up to 63 bins/hour, depending on gantry length and product.
Gantry widths range up to 8 metres with a galvanized UB40 frame. Integrated full/empty bin conveyors reduce forklift use, and the gantry head can feed multiple hoppers. Safety features include light curtains, soft tipping via a controlled discharge door, and full fencing. The system also includes SEW drive motors and remote-access HMI control.
Watch the Bin Tipper in action!

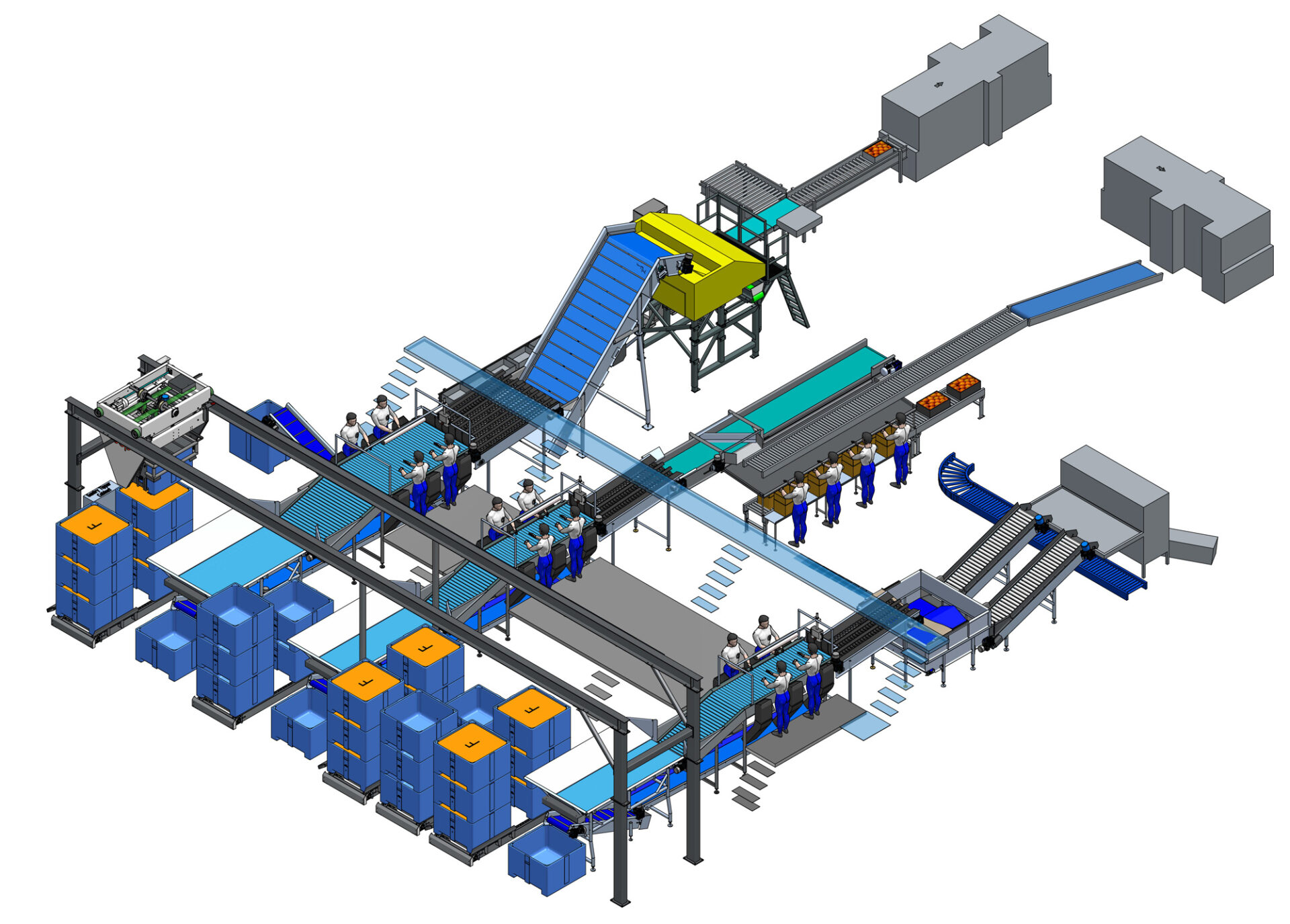

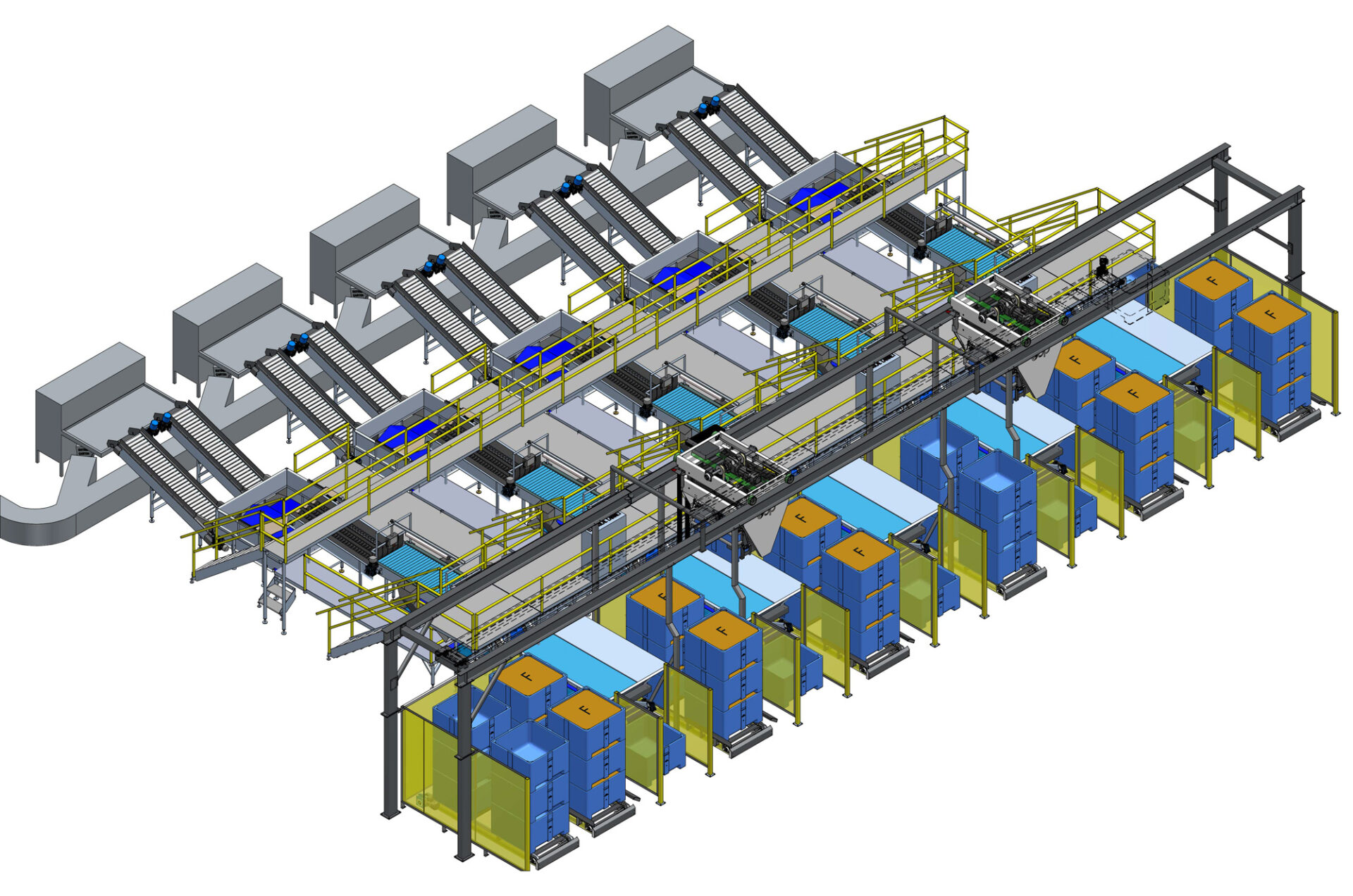

Example layouts
Click on layout to enlarge the image.
Complete 3D Shed Scanning Available
edp offers advanced 3D shed scanning to ensure your new machinery fits perfectly. Our scanning technology captures precise measurements of your space, allowing us to design custom solutions that integrate seamlessly into your existing shed layout—saving time, avoiding costly errors, and ensuring smooth installation.
Reliable and Renowned
An original equipment manufacturer, edp has a well established export market as well as strong associations with European manufacturers to offer the best technology in the world of fresh produce packaging and handling equipment.
