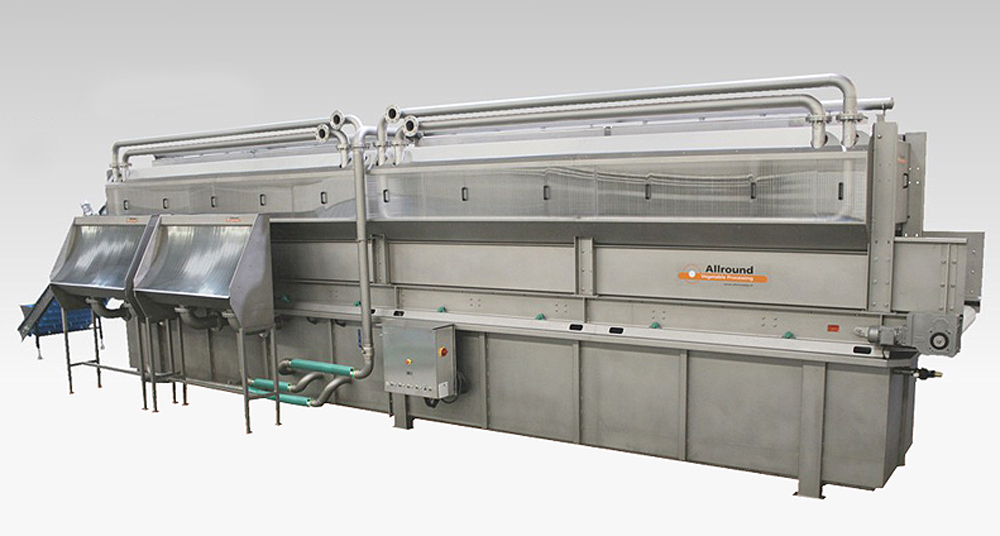

edp HYDROCOOLER

 Hydrocoolers cool down carrots fast by spraying ice cold water over the produce to mostly 3-4 degrees Celsius right before the product is cold stored or transported.

Which machine you will need completely depends on the temperature gap and required capacity per hour. The formula is as follows:

(T/°C x tons product/hour) x 1.36 = kW



specifications

HC 75
Capacity75 kW
Pumps: 50 m³
Cooling Plates: 23
Intralox belt length: 5500 mm

HC 100
Capacity: 100 kW
Pumps: 67 m³
Cooling Plates: 30
Intralox belt length: 7000 mm

HC 150
Capacity: 150 kW
Pumps: 100 m³
Cooling Plates: 45
Intralox belt length: 7000 mm



HC 200
Capacity200 kW
Pumps: 134 m³
Cooling Plates: 60
Intralox belt length: 9500 mm

HC 300
Capacity: 300 kW
Pumps: 210 m³
Cooling Plates: 90
Intralox belt length: 12500 mm
